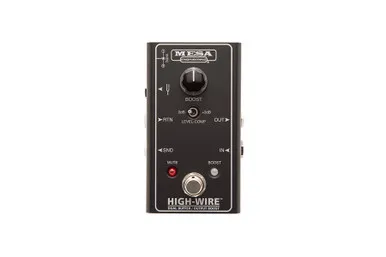

Description
Made in Petaluma, California with the World’s Finest Materials
100% Discrete Class-A STOWAWAY™ Input Buffer Circuit
Provides the tone & feel of plugging directly into a high-quality tube amp
RFI Filtering minimizes radio-frequency interference and noise
Segregated Send & Return Effects Loop provides guitar AND amp with a resolute load and source for the most consistent tone and feel possible
Integrated CLEARLINK™ Output Line Driver with +3db Level Comp Switch – Capable of driving long ¼” cable runs directly to your amp’s input
Tuner Output – Provides an “always on” buffered output separate from the main signal chain to feed tuner
Dual Function Boost/Mute (Tune) Footswitch – Press on/off to activate Boost –
Press and hold to activate Mute/Tune
Variable, Footswitchable Boost Control from Unity up to +22db of Output Boost
Boost On/Off Status LED
Mute (Tune) On/Off Status LED
9VDC External Power Jack Input (power supply not included)
Input Impedance: 1M Ohm
Output Impedance: 150 Ohm
Input Buffer Design: Discrete Class-A (MESA Stowaway™)
Output Buffer Design: High-Speed, Low Noise Op-Amp (MESA Clearlink™)
Nominal Operating Voltage: 9VDC
Maximum Operating Voltage: 12VDC
Typical Current Draw: 55mA @ 9VDC
DC Adapter (not included): WARNING!!! To avoid immediate damage and voiding the warranty, the External Power Supply MUST be 9VDC with a NEGATIVE CENTER and a 2.1mm x 5.5mm Barrel Plug
Weight: 0.743 lbs (337g)
Dimensions (W x D x H): 2.48 x 4.48 x 2.06 inch (63 x 114 x 52 mm)
