Description
Made in Petaluma, California with the World’s Finest Materials
Passive Design

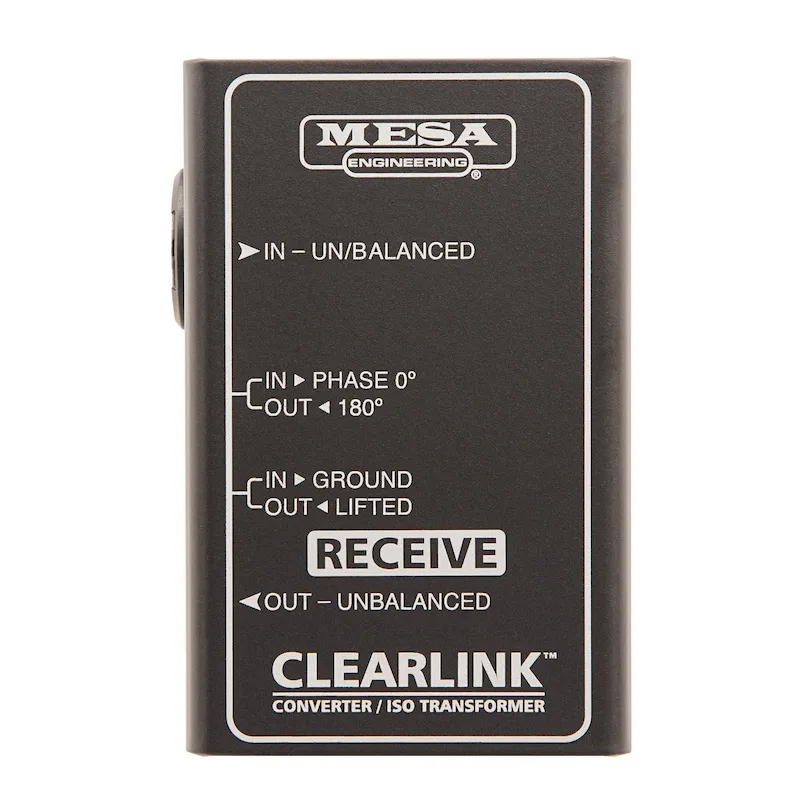

High Quality Jensen Audio Isolation Transformer
Combination XLR/¼” Input accepts Balanced (XLR & TRS ¼”) or Unbalanced (TS ¼”) Inputs
High-Performance Balanced to Unbalanced Signal Converter from drive-lines up to 330ft away
¼” Unbalanced Output is electrically isolated from the input, via the specially designed and shielded isolation transformer.
Phase Switch – Inverts (reverses) the phase of the output signal in relation to the input signal.
Ground Switch – Safely lifts (isolates) the ground connection between the IN and OUT jacks, eliminating ground loop hum and noise.
Maximum Input Level: +16dBu
Frequency Response: 20Hz – 20kHz (-1dB)
Total Harmonic Distortion: 0.002% (1kHz, +4dBu)
CMRR (Common-Mode Rejection Ratio): 120dB (Bal. 60Hz, +4dBu)
Weight: 0.512 lbs (232 g)
Dimensions (W x D x H): 3.86 x 2.48 x 1.71 inch (98 x 63 x 44 mm)
